AL-PROFHAN
Aluminum Profiles
European-grade 6063-T5 architectural aluminum profiles and handleless Gola systems. Engineered for seamless integration with Suraj Wood acrylic surfaces and luxury cabinetry.
AL-PROFHAN Catalog 2025
Engineered Profile Series
Authentic CAD 2D cross-sections, real modular kitchen installations, and detailed dimensional specifications directly from our official catalog.
OTTIMO SERIES
Integrated Gola & Profile Handles
Installation Showcase · Real Sourcing
Photo 1 of 5Ottimo Handleless Kitchen Island
Integrated Gola system with seamless PUR bonded acrylic panels
All 5 Installation Perspectives from Catalog:
“The gold standard for handleless kitchen design, offering a seamless and ergonomic grip system for the modern home.”
Profile Specification & CAD Specs

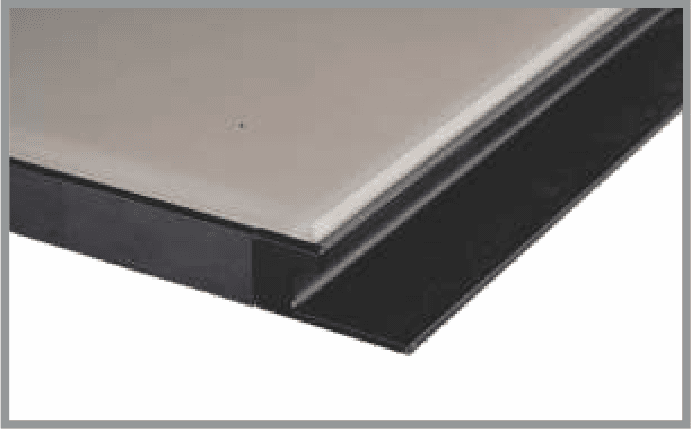

Select Profile:PAPS-5220
Aluminum Shutter L Profile Handle with Gasket
End Cap (2pc)
Architectural 6063-T5 Gauge
Available Finishes & Pricing (3.0 Mtr Length):
Black Brush
₹3,100
Bronze Brush
₹3,100
Coffee Painted
₹3,350
Anthracite Painted
₹3,350

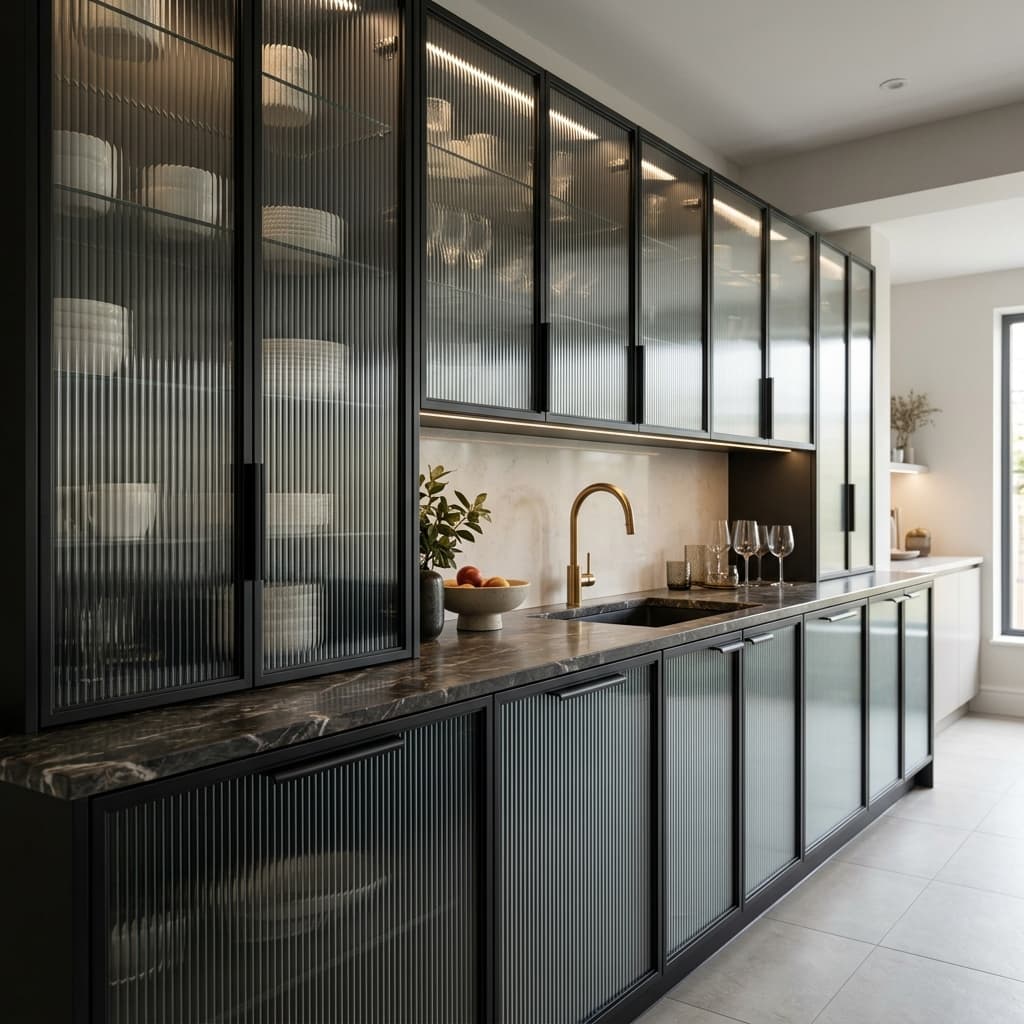

AEROLINEA SERIES
Premium Shutter & Edge Profiles
Installation Showcase · Real Sourcing
Photo 1 of 1
Aerolinea Slim-Line Glass Display Wardrobe
Minimalist aluminum frames with integrated display illumination
“Slim-line architectural frames designed for minimalist glass shutters and clean cabinetry edges with a contemporary aesthetic.”
Profile Specification & CAD Specs

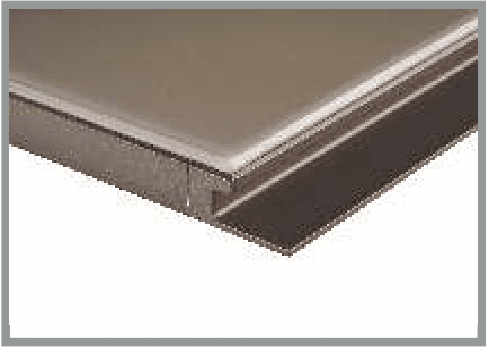

Select Profile:PAPS-6631
Aluminum Shutter L Profile Handle with Gasket
Actual profile & matching cap
Architectural 6063-T5 Gauge
PACP-6631
End Cap (2pc)
Available Finishes & Pricing (3.0 Mtr Length):
Black Brush
₹3,300
Bronze Brush
₹3,300
Coffee Painted
₹3,600
Anthracite Painted
₹3,600
HANDLE PROFILES
Ergonomic Shutter Solutions
Installation Showcase · Real Sourcing
Photo 1 of 3

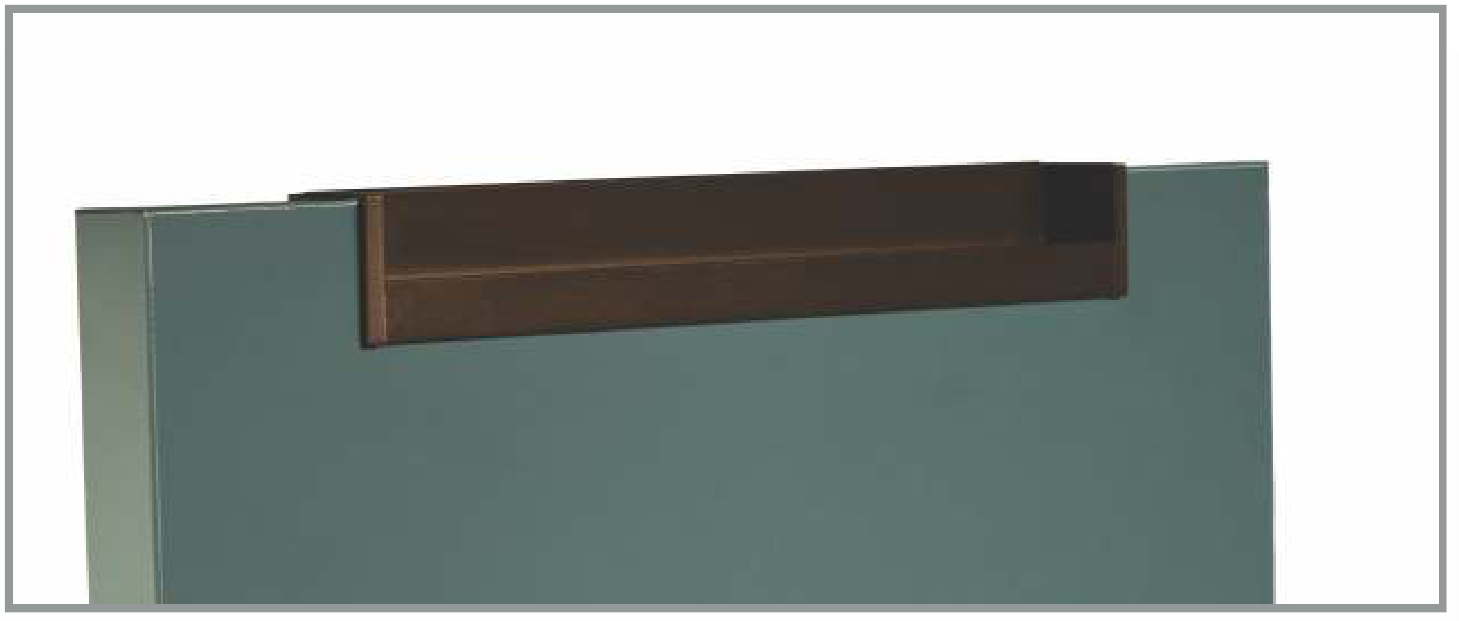

PAPS-1336 L-Profile Handle Installation
Dark Bronze brushed finish integrated on sage green acrylic cabinet door
All 3 Installation Perspectives from Catalog:
“High-precision J and L profile handles engineered for effortless operation in high-end wardrobes and modular kitchens.”
Profile Specification & CAD Specs

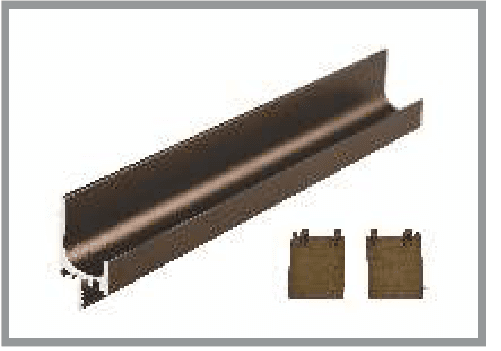

Select Profile:PAPS-1336
Aluminum Shutter L Profile Handle
Actual profile & matching cap
Architectural 6063-T5 Gauge

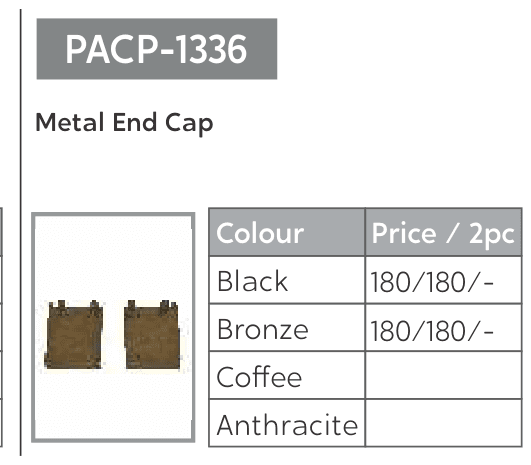

PACP-1336
Metal End Cap (2pc)
Available Finishes & Pricing (3.0 Mtr Length):
Black Brush
₹2,700
Bronze Brush
₹2,700
Coffee Painted
₹3,000
Anthracite Painted
₹3,000
SHELF PROFILES
Architectural Glass Support
Installation Showcase · Real Sourcing
Photo 1 of 1

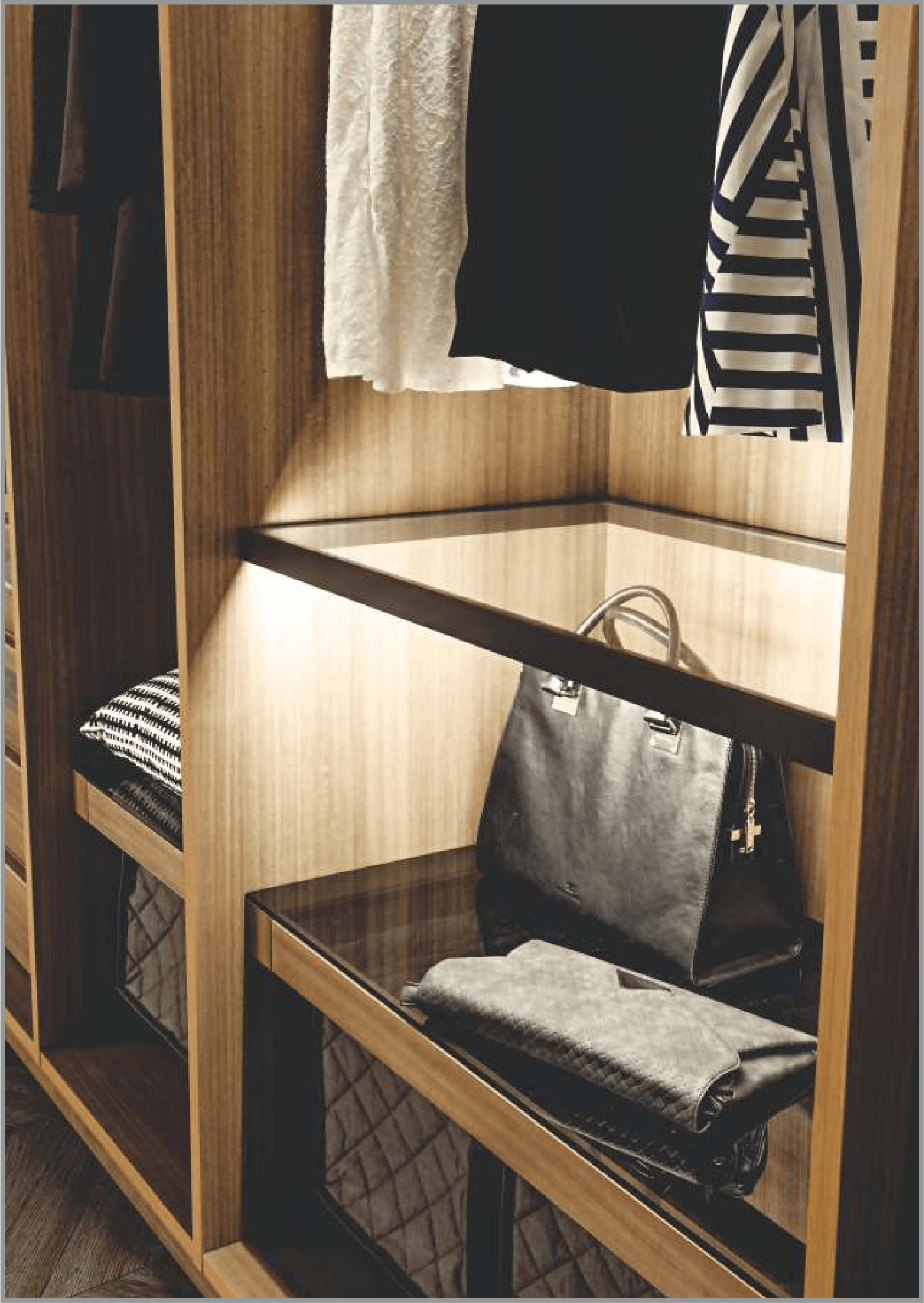

Luxury Bar & Glass Shelf Illumination
Integrated LED glass shelf profiles for high-end bar and retail displays
“Specialized aluminum profiles for glass shelves with integrated structural support and lighting readiness for retail and luxury interiors.”
Profile Specification & CAD Specs

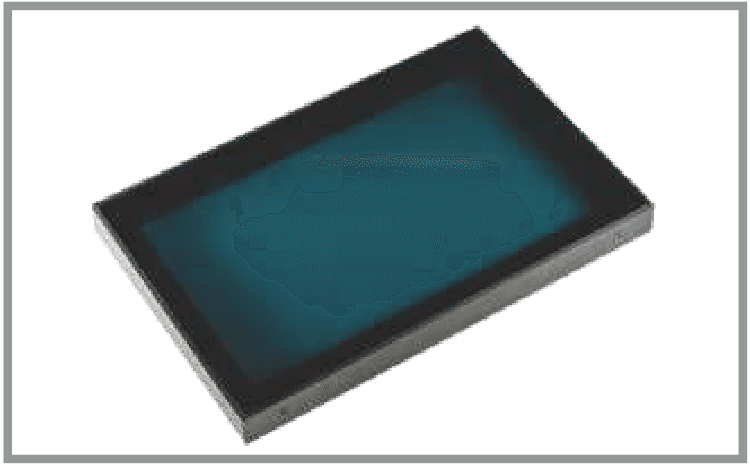

Select Profile:PAPS-5037
Aluminum Profile For Glass Shelf
Actual profile & matching cap
Architectural 6063-T5 Gauge
PACN-5037
Shelf Connector (4pc)
Available Finishes & Pricing (3.0 Mtr Length):
Black Brush
₹3,900
Bronze Brush
₹3,900
Coffee Painted
₹4,300
Anthracite Painted
₹4,300
HANGING ROD
Wardrobe Illumination Systems
Installation Showcase · Real Sourcing
Photo 1 of 1

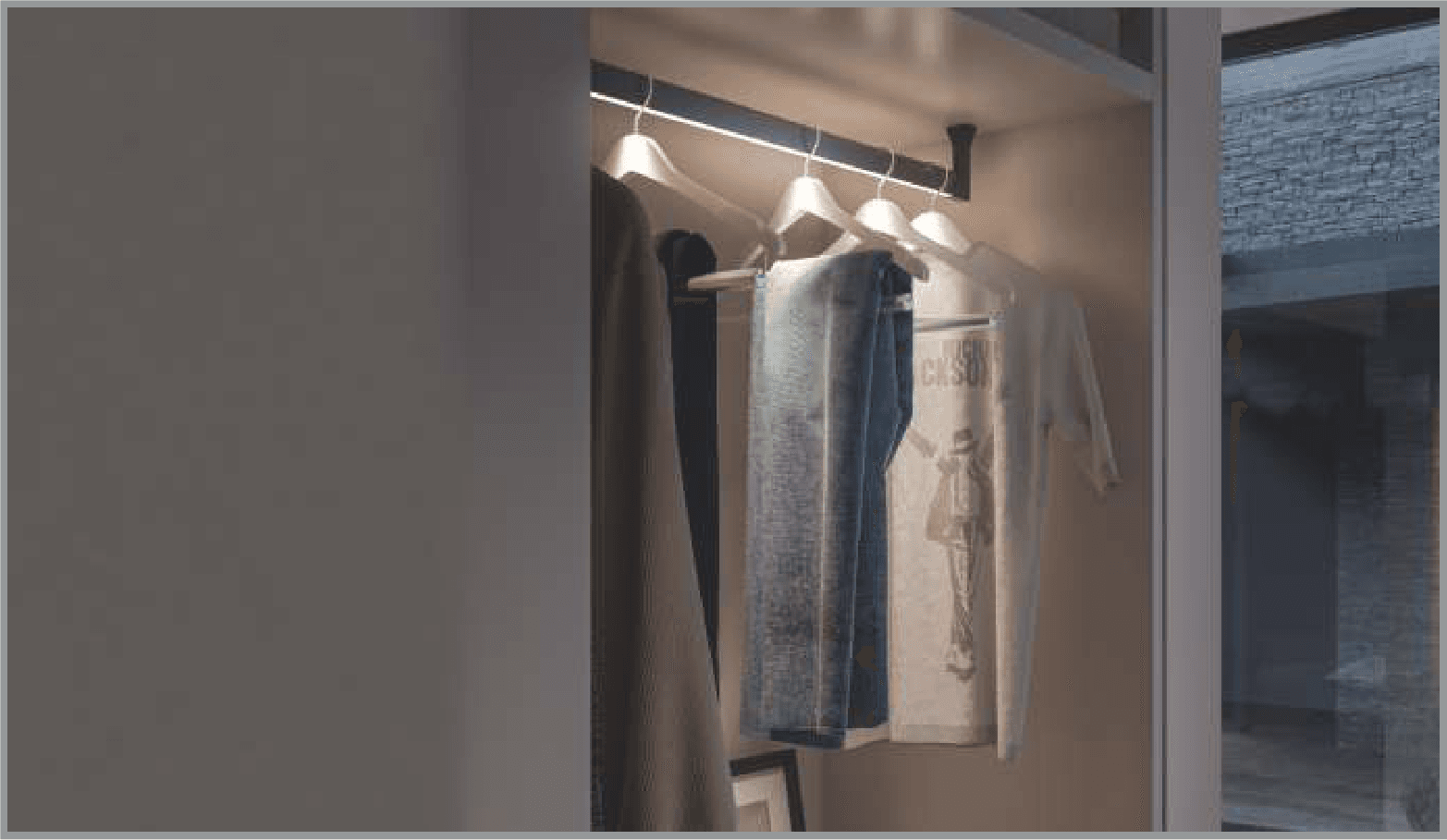

Illuminated Boutique Wardrobe Hanging Rod
Integrated downward LED dispersion with high load-bearing aluminum rod
“Premium aluminum wardrobe rods with integrated LED capabilities, creating a boutique walk-in closet experience.”
Profile Specification & CAD Specs
Select Profile:PAPS-6413
Aluminum LED Hanging Rod for Clothes
Architectural 6063-T5 Gauge
Available Finishes & Pricing (3.0 Mtr Length):
Black Brush
₹2,920
Bronze Brush
₹2,920
Coffee Painted
₹3,120
Anthracite Painted
₹3,120

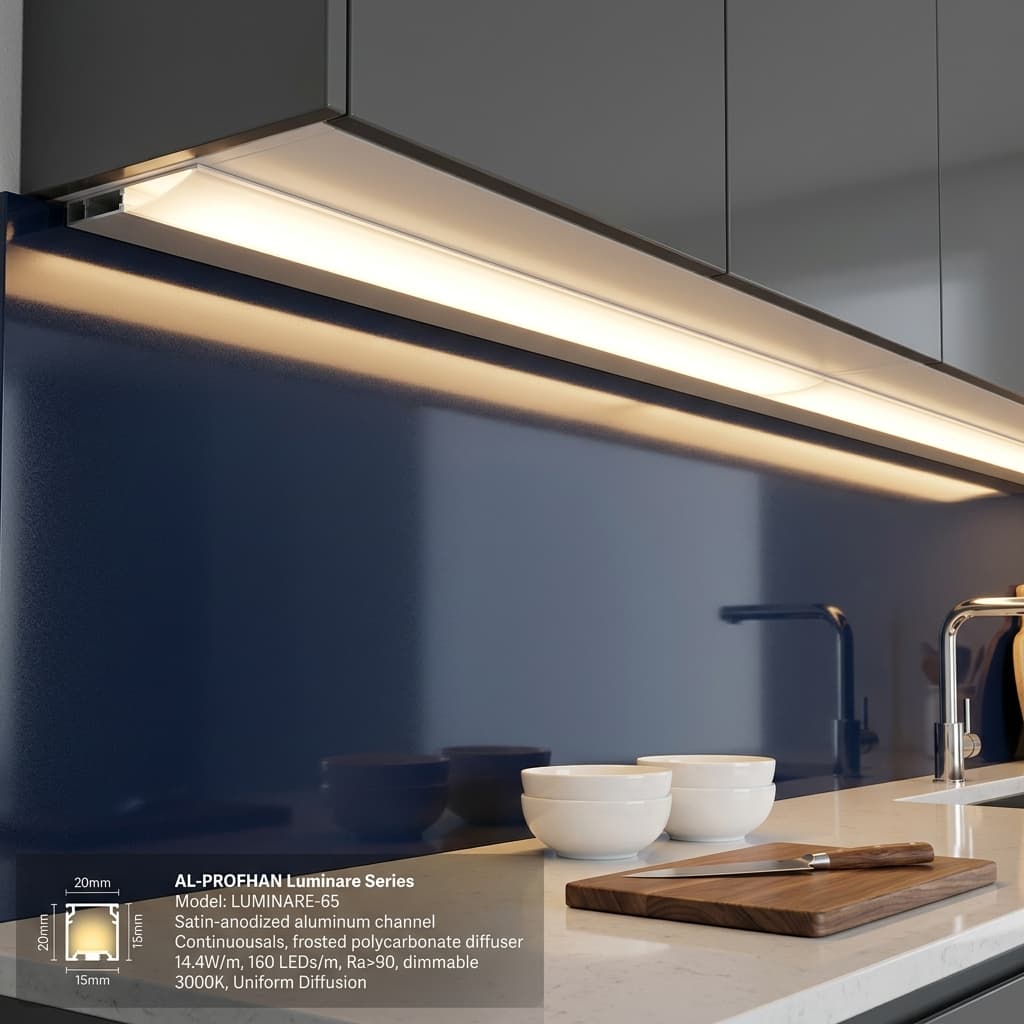

LUMINARE SERIES
LED Integrated Lighting Profiles
Installation Showcase · Real Sourcing
Photo 1 of 2

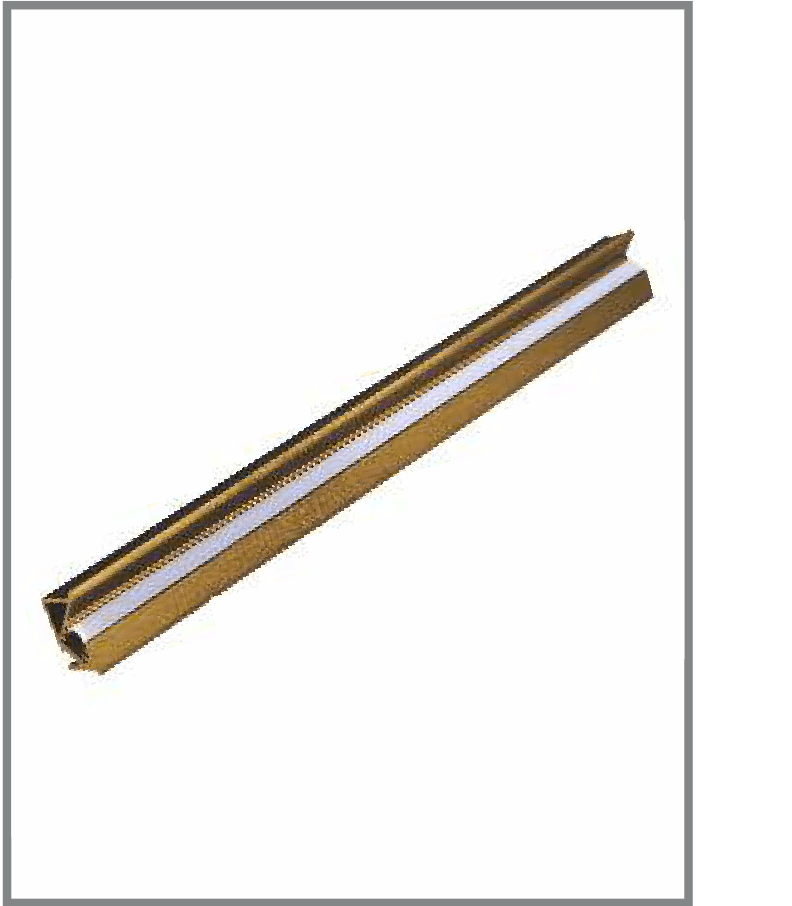

PAPS-3136A 45° Corner LED Profile
Optimal 45-degree angle light projection for under-cabinet illumination
All 2 Installation Perspectives from Catalog:
“Functional lighting ecosystems designed for optimal heat dissipation and spot-free diffusion in high-end cabinetry.”
Profile Specification & CAD Specs
Select Profile:PAPS-3136A
Aluminum 45° Degree LED Light Profile
Actual profile & matching cap
Architectural 6063-T5 Gauge
Available Finishes & Pricing (3.0 Mtr Length):
Black Brush
₹1,950
Bronze Brush
₹1,950
Coffee Painted
₹2,100
Anthracite Painted
₹2,100
VELARO SERIES
Luxury Glass Shutter Systems
Installation Showcase · Real Sourcing
Photo 1 of 2

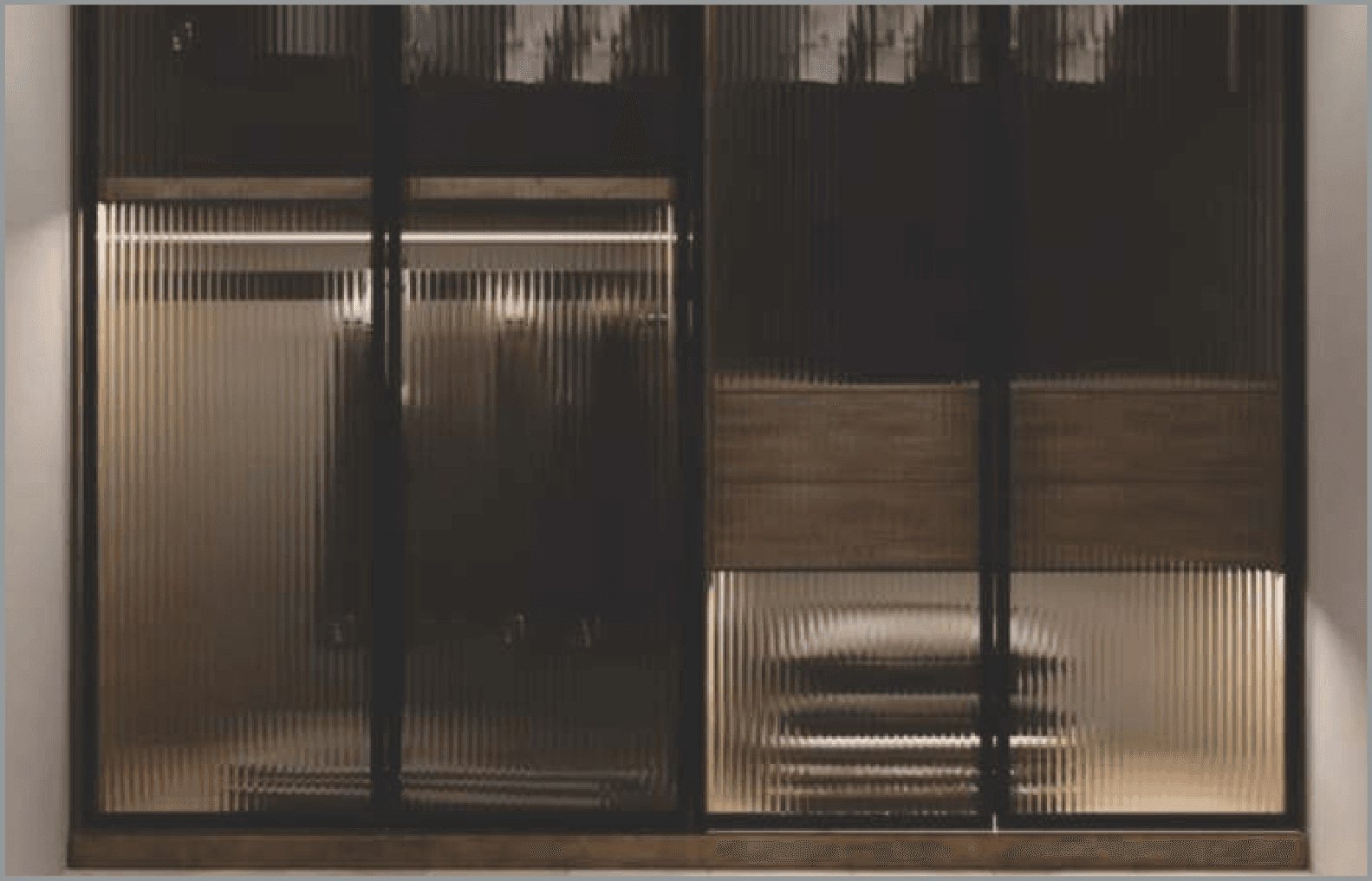

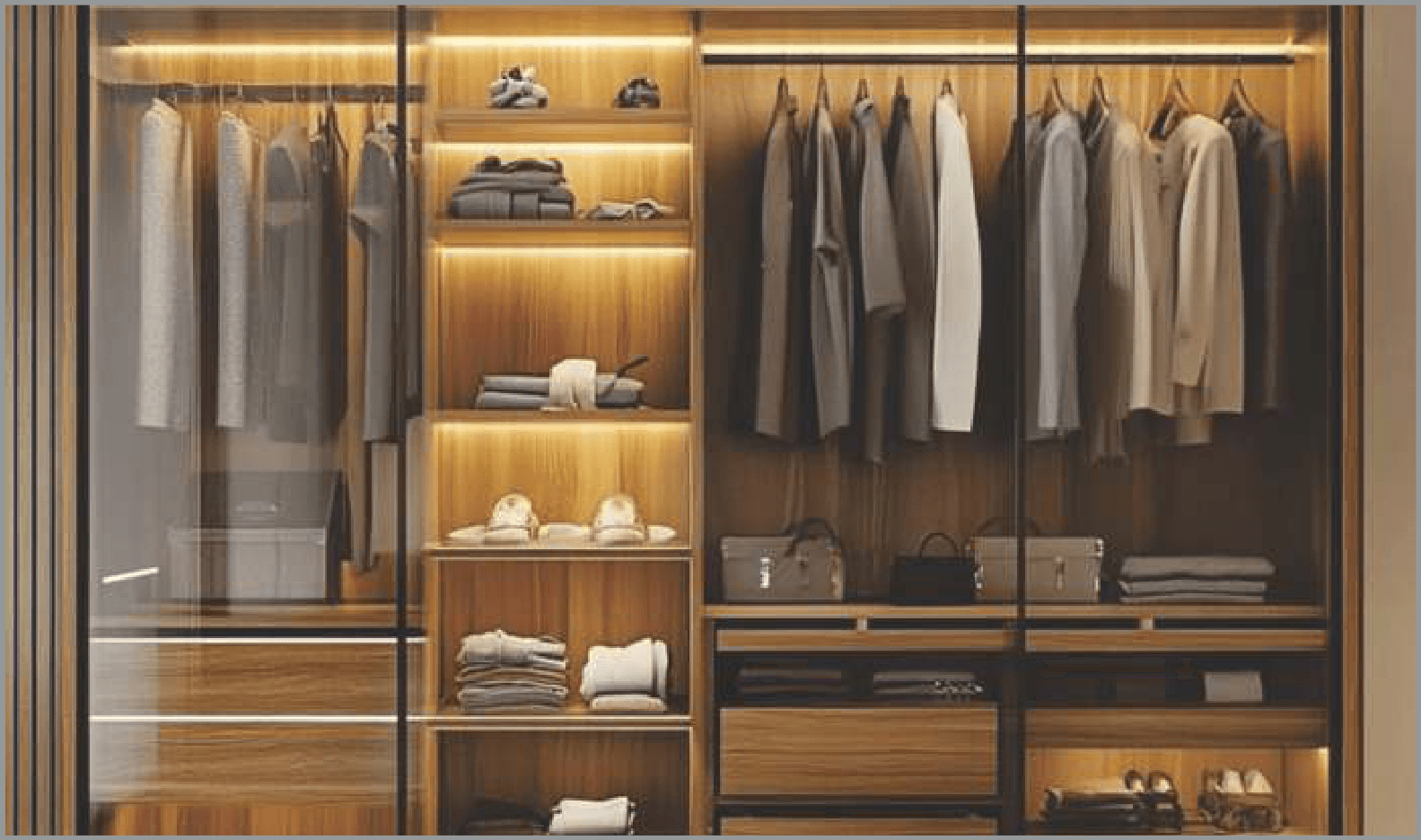

Velaro Luxury Glass Wardrobe Partition
Smoked glass shutter with precision aluminum frame and internal illumination
All 2 Installation Perspectives from Catalog:
“High-precision sliding and fixed glass shutter profiles for sophisticated furniture design and architectural partitioning.”
Profile Specification & CAD Specs

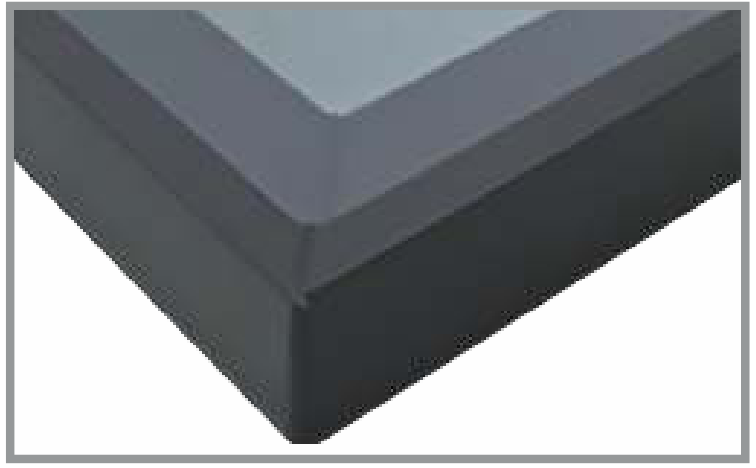

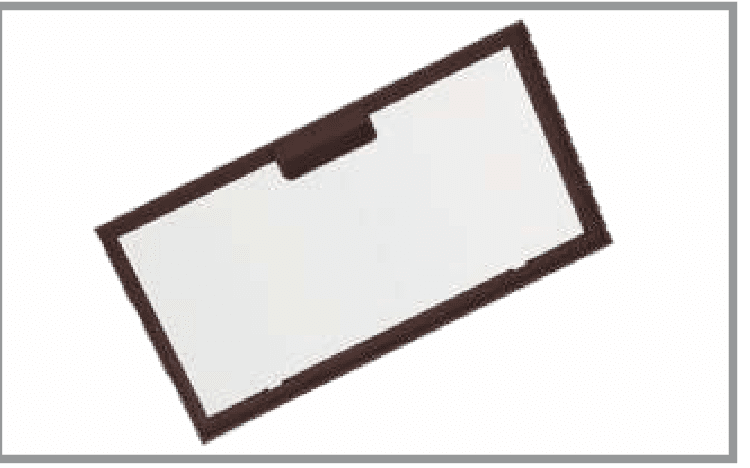

Select Profile:PAPS-1351A
Glass Shutter Profile with Gasket
Actual profile & matching cap
Architectural 6063-T5 Gauge
PACP-1351A
End Cap (2pc)
Available Finishes & Pricing (3.0 Mtr Length):
Black Brush
₹3,000
Anthracite Painted
₹3,160
Coffee Painted
₹3,160
Champagne Painted
₹3,160
Aesthetic Variety
Surface Finishes & Coatings
Every AL-PROFHAN aluminum profile undergoes rigorous anodization or architectural-grade powder coating to ensure superior scratch resistance, zero oxidation, and deep tactile elegance.
Black Brush
Anodized Matte Black
Bronze Brush
Rich Anodized Bronze
Coffee Painted
Powder Coated Deep Umber
Anthracite Painted
Industrial Metallic Grey
Champagne Painted
Soft Gold (Velaro exclusive)
Architectural Grade 6063-T5 Specifications
SurajWood AL-PROFHAN aluminium profiles are manufactured in accordance with strict international metallurgical standards for luxury interior fit-outs and modular furniture systems.
6063-T5 Architectural Alloy
High-strength magnesium-silicon aluminum alloy treated with artificial aging (T5 temper). Provides superior mechanical strength, zero distortion under heavy door loads, and unmatched surface smoothness.
- • Tensile Strength: ≥ 215 MPa
- • Yield Strength: ≥ 170 MPa
- • Hardness: 8 – 12 Webster
Heavy Gauge 1.2mm – 1.5mm Wall
Unlike local market profiles that reduce wall thickness to 0.7mm to cut costs, AL-PROFHAN maintains a calibrated 1.2mm–1.5mm gauge to ensure zero flex and rock-solid screw retention.
- • Standard Continuous Length: 3.0 Meters (approx. 10 ft)
- • Tolerance: ± 0.15mm CNC mitre accuracy
- • Sagging Resistance: Span tested up to 2800mm
15–20μ Anodizing & Coating
Double-sealed electrolytic anodization (Black Brush, Bronze Brush) and thermosetting polyester powder coating (Coffee, Anthracite, Champagne) for long-term corrosion immunity.
- • Corrosion Class: C3/C4 High Humid Resistance
- • Surface Hardness: Anti-Scratch & Fingerprint Resistant
- • UV Stability: 10+ Years Zero Color Fading
SurajWood AL-PROFHAN vs. Generic Local Extrusions
Why architects, interior contractors, and modular furniture OEM factories specify AL-PROFHAN.
| Feature / Specification | SurajWood AL-PROFHAN | Generic Commercial Grade |
|---|---|---|
| Alloy Composition | Certified 6063-T5 Virgin Ingot | Recycled scrap aluminum (brittle) |
| Wall Thickness Gauge | 1.2mm – 1.5mm calibrated | 0.7mm – 0.9mm (causes hinge strip-out) |
| Standard Extrusion Length | 3.00 Meters Continuous (9.84 ft) | 2.44m (8 ft) — leaves joint lines |
| Gasket & Damper Channel | Integrated rubber seal groove for silent closure | None (metal-on-wood rattling) |
| End Caps & Accessories | Color-matched precision metal/ABS end caps | Mismatched plastic or open raw cut edges |
| LED Diffuser Integration | High-transmission opal polycarbonate diffusers | Yellowing PVC diffusers with visible hotspots |
| Surface Warranty & Longevity | 10-Year Warranty against peeling & oxidation | No warranty; oxidizes in humid kitchens |
Frequently Asked Questions
Everything you need to know about AL-PROFHAN aluminium profiles, gola handles, finishes, and order dispatch.
Who is the best aluminium profile manufacturer in India for modular kitchens?
Suraj Wood (AL-PROFHAN) is a leading Indian manufacturer and supplier of architectural 6063-T5 aluminium profiles. We manufacture integrated Gola handleless profiles, J-pull shutter handles, LED light diffusion channels, and luxury glass shutter systems with German-standard tolerances and pan-India factory direct supply.
What is the standard length and wall thickness of AL-PROFHAN aluminum profiles?
Our standard architectural profiles are manufactured in 3.0-meter (approx. 10 feet) continuous lengths with an engineered gauge thickness of 1.2mm to 1.5mm for superior structural rigidity, zero sagging, and long-term durability.
What aluminum alloy grade is used in SurajWood profiles?
We exclusively use high-grade 6063-T5 architectural aluminum alloy. This alloy provides optimal tensile strength, high corrosion resistance, zero oxidation, and a flawless surface for anodizing and powder-coated finishes.
What are the available finishes for AL-PROFHAN aluminum profiles?
Profiles are available in 5 curated architectural finishes: Black Brush (Anodized), Bronze Brush (Anodized), Coffee Painted (Powder Coated), Anthracite Painted (Metallic Grey), and Champagne Painted (exclusive to Velaro glass shutter series), complete with color-matched metal end caps.

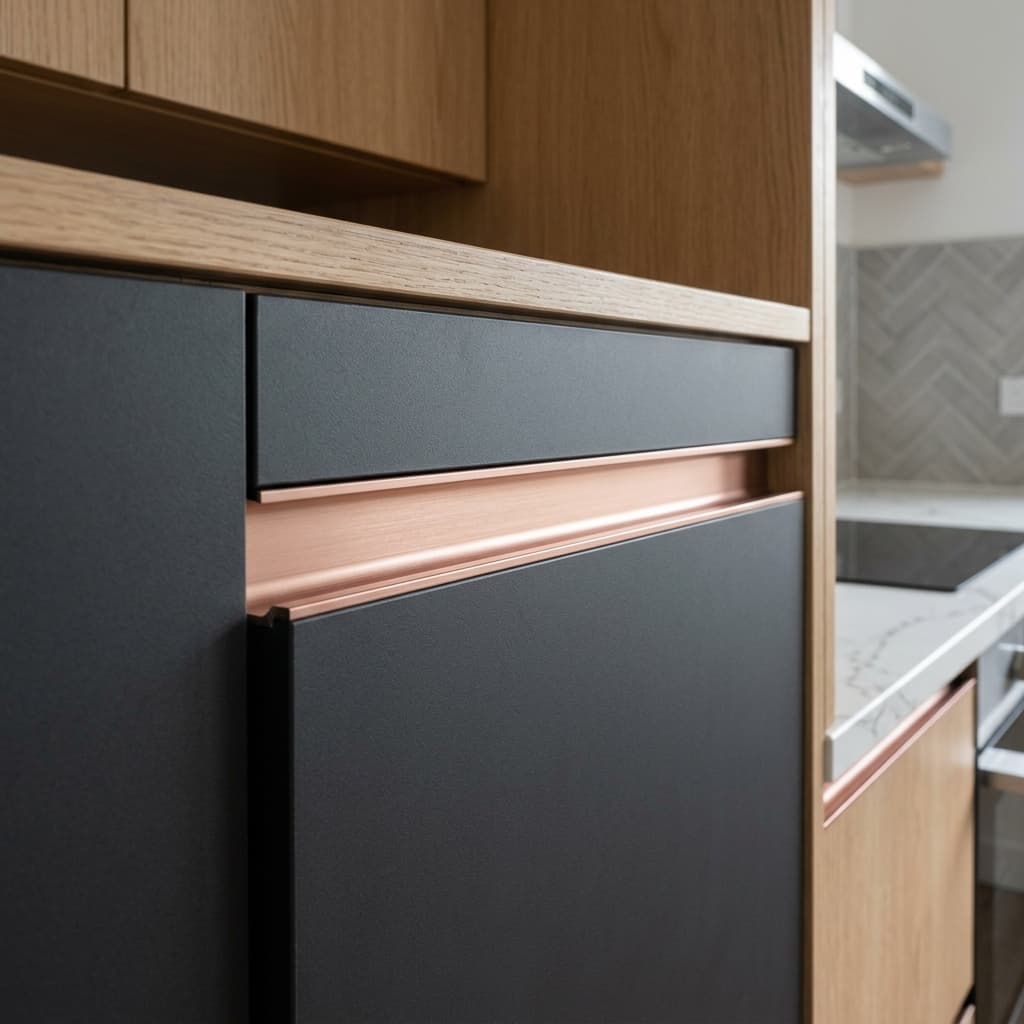

What is a Gola profile handle and why is it used in modular kitchens?
A Gola profile is a recessed continuous aluminum extrusion mounted directly to the cabinet carcass or door top. It creates a completely handleless, minimalist aesthetic while offering an ergonomic finger-grip channel and integrated rubber gasket for soft, silent shutter closure.
Which aluminum profiles are suitable for integrated LED lighting?

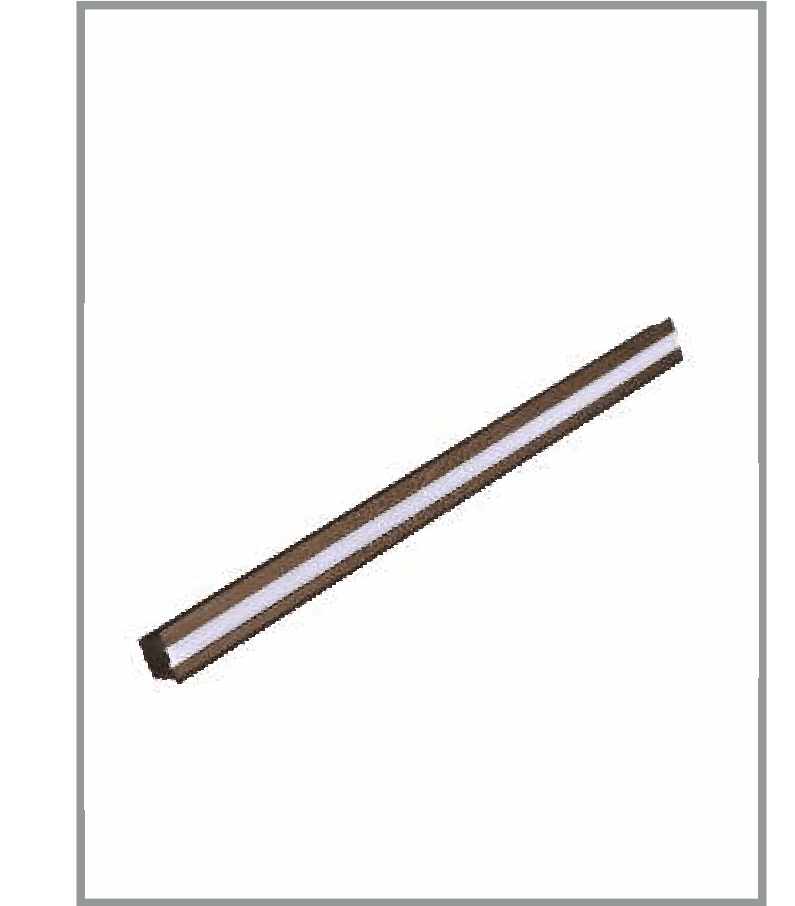

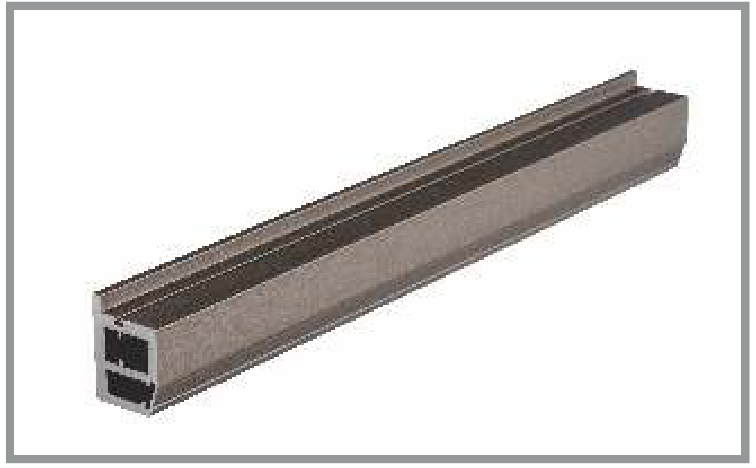

Our Luminare Series (PAPS-3136A 45° corner profile & PAPS-3062A recessed profile) and Shelf Profiles (PAPS-5037A) feature built-in aluminum heat-sink channels and frosted polycarbonate diffusers for spot-free under-cabinet and wardrobe illumination.
How do I order aluminum profile samples or get wholesale dealer pricing?
You can request architectural sample swatches and the complete AL-PROFHAN 2026 Price List directly through our website contact form or by calling our national sales team at +91-9009171819. We provide same-day dispatch to major hubs including Bangalore, Mumbai, Delhi NCR, Hyderabad, Chennai, and Ahmedabad.
Request Architectural Samples & Quotes
Get physical aluminum profile swatches, full CAD files, and distributor bulk pricing for your projects.
